PTS 800 STAGE IV / TIER 4

    100% Oil-free air mobile compressor

    General
    Dimensions (L x W x H) 13.16 x 6.66 x 7.97 ft 4.1 x 2.03 x 2.43 m
    Weight 10,747.5 lb 4.800 kg
    Fuel tank capacity 105.7 US gal 400 liters
    Sound power level LWA 100 dB (A)
    Compressor Engine
    Number of stages 2 in series Engine make / model MTU 6R1000
    Maximum ambient temperature 45°C / 113°F Output @ 100% load factor 210 kW / 281.6 hp
    Fuel consumption at 100% load 45,8 l/h / 12.1 gal (US)/hr

    Performance
    Working Pressure Free Air Delivery
    bar(e) psig m3/min m3/h cfm
    10,34 150 22,5 1352 796

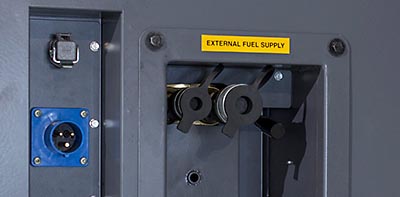

  • External fuel connection

    External fuel tank connections allow continuous round-the-clock operation.

  • LCD Display

    The color LCD display of the User Interface gives essential process information. The ergonomic design reduces any mix-up of functions or buttons.

  • Primary fuel filter

    The heavy duty primary fuel filter ensures optimal protection of the engine.

  • Battery switch

    The PTS 800 is equiped with an easy-to-reach battery switch. It disconnects the battery power from the electrical circuits in the unit.

  • Engine, MTU

    Reliable and efficient engine, complies to the latest Stage IV / Tier 4 exhaust emission standards.

  • Engine Overspeed Protection

    The air shut-off valve will close automatically and shut-down the engine when overspeed is detected.

  • Fire Extinguishing System

    The PTS 800 is safeguarded by an automatically activated fire extinguishing system.

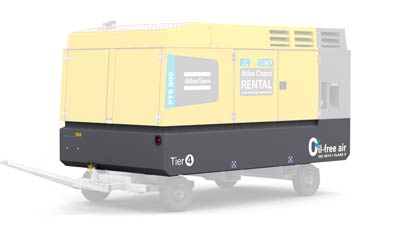

  • Spillage free frame

    The PTS 800 is standard equipped with a "spillage-free"-frame to avoid soil contamination in case of oil & fuel leakages.

  • Emergency stop

    Flash light and horn

  • Easy access drain points for oil and coolant

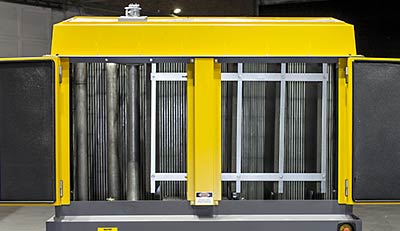

  • Integrated aftercooler & High efficiency air filters

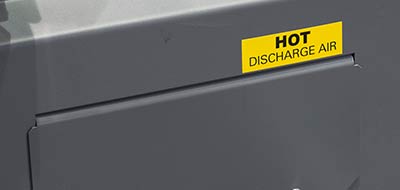

  • Separate hot air outlet

    • >
