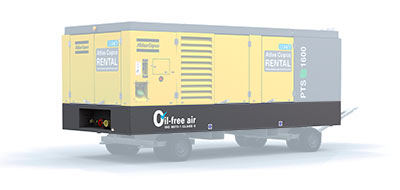

PTS1600 compressor

    100% Oil-free Air Compressor
    Stage IIIB Certified or interim Tier4i units

    Why choose the PTS1600?

    Lowest emissions: With the PTS1600 you rent the most environmentally friendly solution on the market: NOx and PM (Particulate Matter) are drastically reduced compared to previous generations. In other words, you help create a healthier environment for all of us.

    Highest reliability for minimum downtime: Thanks to the robust Cummins QSX engine the PTS1600 is even more reliable than its predecessors.

    Maximum fuel efficiency for lowest running cost: The PTS1600 reduces fuel consumption by up to 12% compared to the previous generation. An unrivalled performance, giving you a significantly lower running cost.

    Performance:

    Compressor maximum capacity   FAD 762 l/s - 45.7 m3/min
    Working Pressure: 0.5 to 10.3 bar(e) - 100 to 150 psig
    Free Air Delivery: 45.7 to 37.4 m3/min - 1600 to 1321 cfm

  • External fuel connection

    External fuel tank connections allow continuous round-the-clock operation.

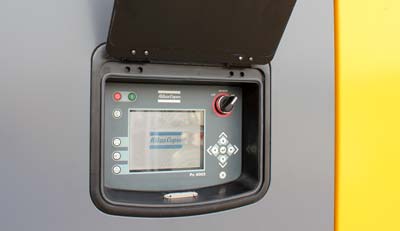

  • LCD Display

    The color LCD display of the User Interface gives essential process information. The ergonomic design reduces any mix-up of functions or buttons.

  • Primary fuel filters

    Maintenance work can be done on the fuel filters during operation, without having to stop the unit.

  • Battery switch

    The PTS1600 is equiped with an easy-to-reach battery switch. It disconnects the battery power from the electrical circuits in the unit.

  • Engine (Cummins)

    Reliable and efficient engine, Stage IIIB Certified, wich conforms to the latest Tier4i exhaust emission standards.

  • Engine Overspeed Protection

    The air shut-off valve will close automatically and shut-down the engine when overspeed is detected.

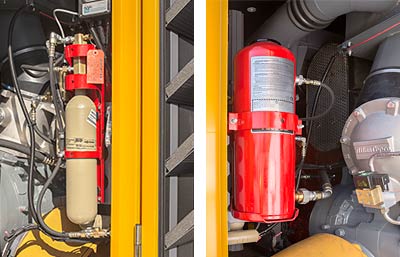

  • Fire Extinguishing System

  • iACCESS

    The intelligent Atlas Copco Equipment Satellite System (iACCESS) allows us to remotely monitor fleet performance to improve machine up-time, security and safety..

  • Integrated aftercooler

    Condensation in compressed air may cause damage when working at low ambient temperatures. An integrated aftercooler with water separator removes liquid water from the compressed air.

  • Spillage free frame

    The PTS1600 is standard equipped with a "spillage-free"-frame to avoid soil contamination in case of oil & fuel leakages.

  • Remote connection

    Safe for your process: For starting/stopping the compressor remotely.
